wrought iron steel scroll pattern bender ferforje machine design

FOB Reference Price:Get Latest Price
US $1-1,199 / Set | 1 Set/Sets wrought iron steel scroll pattern bender ferforje machine design (Min. Order)
Supply Ability:
100 Set/Sets per Month wrought iron steel scroll pattern bender ferforje machine design
Port:
XINGANG, ANY PORT IN CHINA
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
bender ferforje machine
Model Number:
DH-DW16F
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
wrought iron scroll bender
Color:
Blue
Certification:
ISO9001
Power:
15kw
Voltage:
Three-phrase 380V/220V
Warranty:
One Year
Weight:
400kg
Dimension:
1000mmX560mmX1100mm
Raw material:
Carbon Steel Q235
Name:
wrought iron steel scroll pattern bender ferforje machine design
Packaging & Delivery
Packaging Details
Package wrought iron steel scroll pattern bender ferforje machine design with wooden crate.
Delivery Time
Shipped in 2 days after payment

 wrought iron steel scroll pattern bender ferforje machine design

Product Description

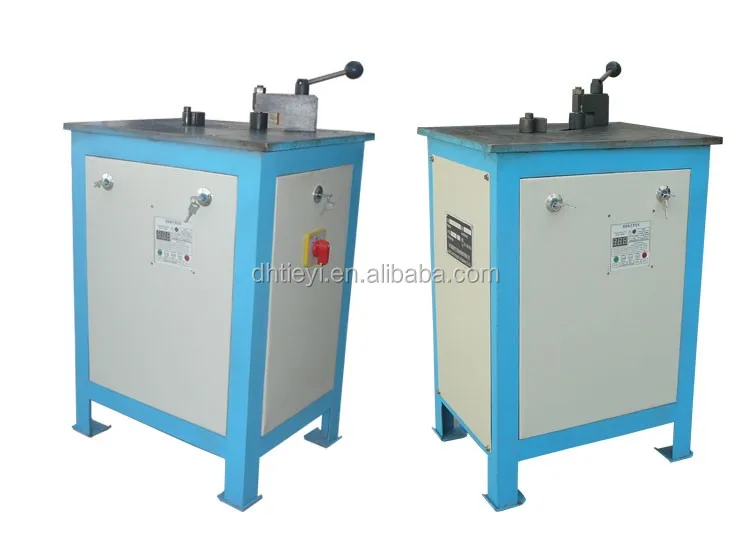

DHDW16F Type Electric Pattern Bender

photos

wrought iron machine, scroll pattern bender, blacksmith equipment

dies



Extra function

 Bend flowers, vertex angle, bending arc and circle

Working ability

(Maximum working specification)

Flat iron

≤8mmX50mm

Round steel

≤   16mm

Square steel

≤16mmX16mm

Basic shaft rotation speed

11 r/min

Electric motor performance

Power: 1.5 KW (class 6) voltage: 380V   Frequency: 50HZ



Main features

1.In pattern bending the machine can automatically control time and localization so as to guarantee the consistent performance, consequently this can reduce working hours and labor intensity.



2.The dies are unconventionally designed with smooth exterior round and without pothole. Having large outspread space.



3.We can replace the dies simply and conveniently, and the replacement can be finished within 48 seconds.



4.high working ability with the maximum ability bending 16mmX16mm square steel.



5.high production efficiency, the machine can bend 300 pieces of C pattern 6mmX15mm flat irons per hour.

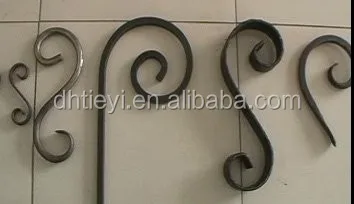

6.The machine is made with comprehensive functions that  can process all kinds and specifications of C, P and S iron patterns.



The machine, suit for processing patterns of all kinds and sizes, is equipped with three kinds of holdup wheels: dia 50mm, dia30mm and dia20mm.

External dimension

1000mmX560mmX1100mm(LXWXH)

Net weight (kg)

350

Gross weight (kg)

400
